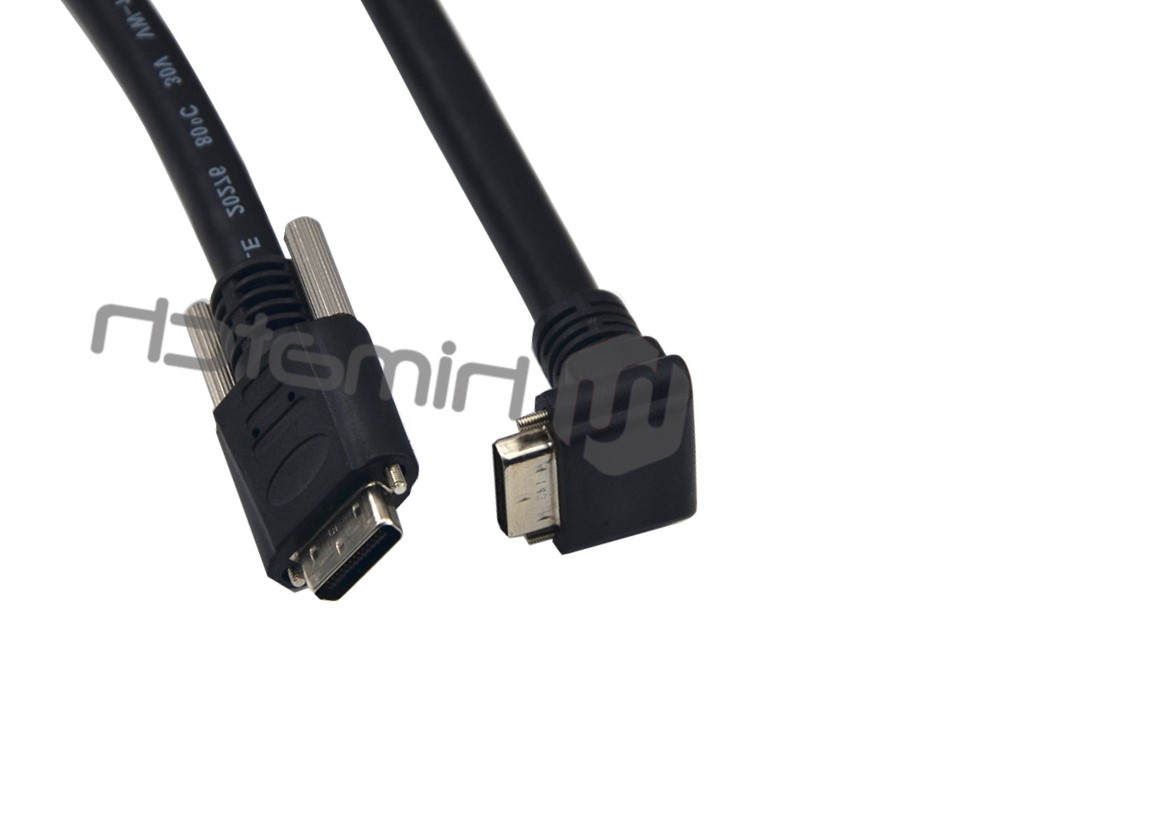

Full Double Shield SDR 26 Cable Right Angle Up / Down Mini camera Cable 10 Meters

Notes before order

Please select the suitable cable base on the specification and performance of the camera.

Description:

Camera link cable, Mini camera link cable series are built of high quality shield cable cable with Honda^® Shrunk Delta Ribbon connector at each end., special deisgn Angled up, or angled down, let the cable be easier for installation in small place, assembly thumbscrew which passed salt spray testing 48 hours. These support outstanding quality, durability, and high performance for industrial CCD camera with SDR receptacle.

Specification:

.

Features

Intra skews : 15ps/m, inter skews 50ps/m

Overall foil and braid shielded provides EMI/RFI protection

Life time: bending cycles 8 millions

RoHS and REACH compliant

Application

frame grabber

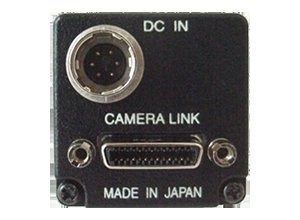

Industrial CCD camera

Industrial vision inspection system

Towed Cable wiring

In order to keep the good bending performance of the robot cable, improve the cable’s life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points

Bending radius.

The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)

Tow chain installation.

In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

Install as many partitions as possible to avoid interference between cables.

Cable length

If the cable is too short and the cable is always tight in the drag chain, the cable jacket will be worn out because of the friction between the cable and the drag chain;

If the cable is too long, then the cable will be slack in the drag chain, also because of the friction between the cables, the jacket also will be wear and tear.

Both of the above will shorten the service life of the cable, please select the most appropriate cable length.
