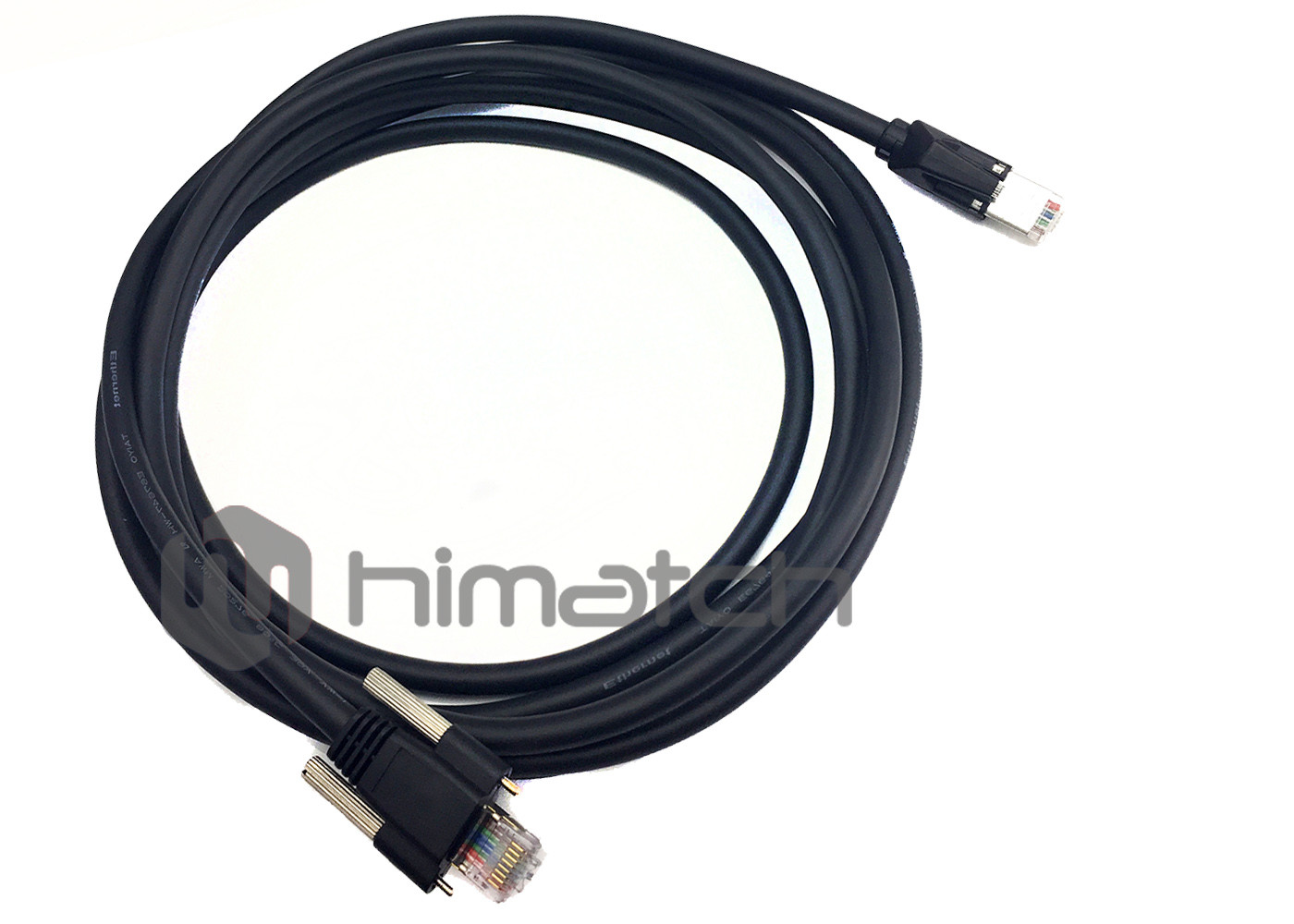

High Flexible Gigabit Ethernet Cable Black Color For Industrial Camera 5m

Description:

Based on Ethernet technology, it is expected that the market will expand rapidly in the future with the visualization and standardization of the machines for industrial technology and industrial robots.

GigGE Camera cable series are constructed of plenum rated CAT5e, CAT6, CAT 6a stranded flexible double shielding cable with AMP or Hirose RJ45 connector, and M12 A Code, B code,D code, X code, robust molding, variety combination of different connectors, They offer outstanding quality, durability, and high performance for industrial FA site.

Specification:

Features

Machine Vision Cable series

100% electronically tested for functionality

RJ45 shielded connector

Double shielded braid + foil design protect EMI/RFI

RoHS and REACH compliant

Application

Cable used for following but not only CCD camera:

Basler ace,Basler aviator,Basler runner,Basler racer,Basler Time-of-Flight series’ model: ACA2500-14GC,ACA640-90GC,ACA1300-60GC,RAL2048-48GM

JAI,AVT’s Guppy Pro, Manta, Stingray, Pike series, Dalsa,Imagingsource and so on, all the Industrial CCD camera with RJ45 connector

Towed Cable wiring

In order to keep the good bending performance of the robot cable, improve the cable’s life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points

Bending radius.

The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)

Tow chain installation.

In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

Install as many partitions as possible to avoid interference between cables.

HIMATCH technology was found in 2004, specializes in designing, developing and manufacturing connectors, and cable assembly, also provide the specialize service for the customer's big and complicated projects.

As an ISO9001 qualified company, We will continuous to provide high quality products and cooperate with different customers from all over the world, OEM &ODM projects available from all our clients.

Connector and Cable assembly Business.
Professional manufacturer and sales machine vision data cables: (high flexible) 1394 cable, (tank chain level) Camera Link high speed data cable, (industrial camera ) CCXC cable, (special cable) GigE cable and etc..

OEM and ODM available , such as signal cables, sensor cables, control cables, products are mainly exported to Europe and the United States, high-end equipment applicable. The products can be customized according to specific requirements, such as: 1394 data cables, such as: high standard cables, soft cable, fixed with screw, with fixed latches, elbow connection, straight head connected with a variety of ferrite cores shielding cable. Camera Link MDR 26P, 26P SDR data cables, such as: high flexible / standard CL cable, high flexible / standard Power Over Link cable, Mini CL cable. 90 degree elbow cable. CCXC 12P data cable, etc. a variety of industrial cameras power supply and I/O cable. Variety of product, reasonable price, timely delivery date, stable and reliable quality.

In order to provide the best service to our customers, we put all our emphasis on new product development, quality control and fast delivery and provide the high competitive price. We make every effort to communicate with our customers, to understand their needs and to tailor efficient and cost-effective solutions for them.

We sincerely regard our customers as long-term partners. We happily listen to customer suggestions and criticisms. This is the starting point from which we can both enhance our capabilities and achieve continuous improvement for our clients.

Our business motto: Mutual benefit, cooperate honestly.
