Firewire Cable 1394a to 1394b Flexible PVC Cable for Factory Automation Camera 1394

Description:

IEEE 1394 is high speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the same time

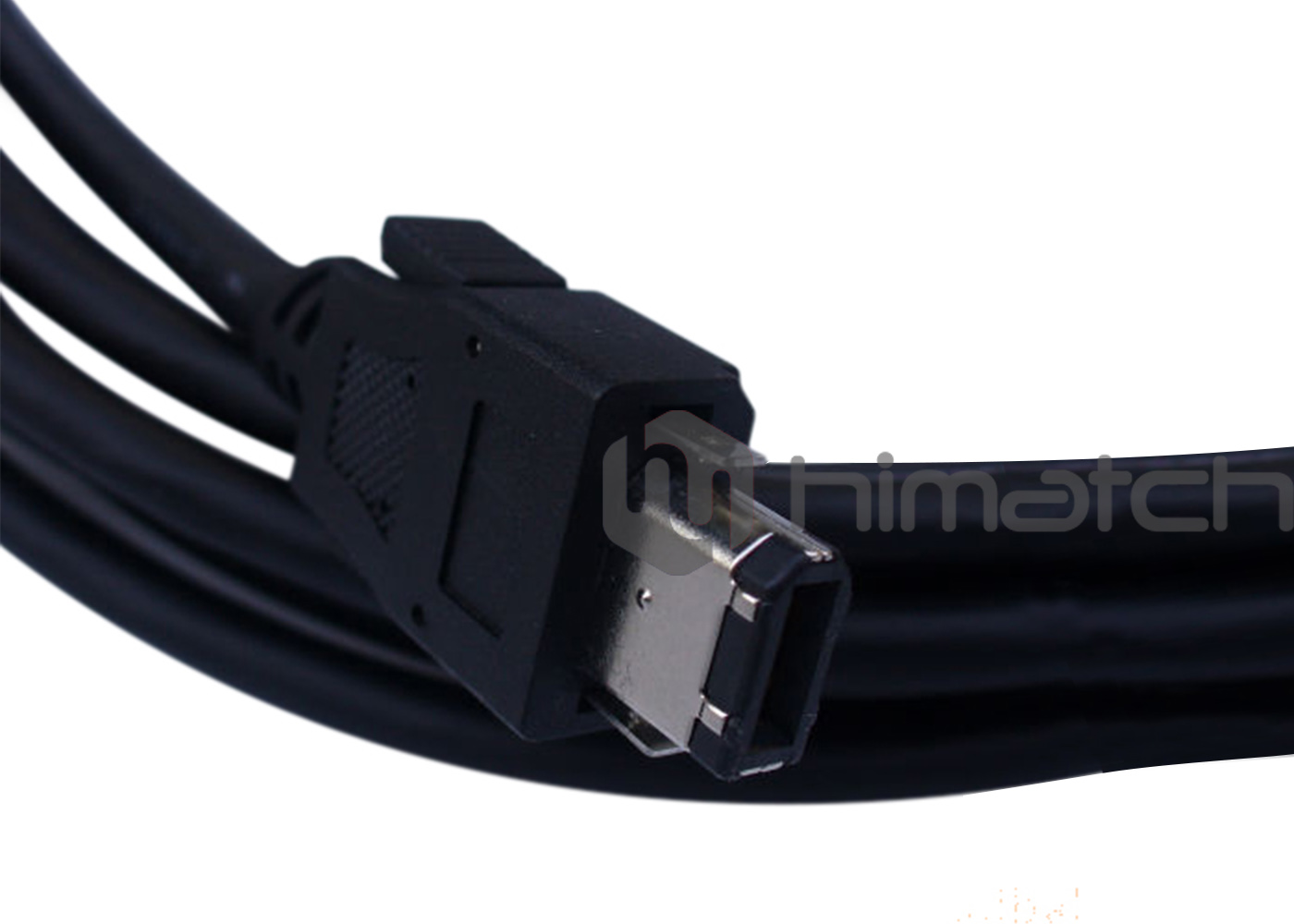

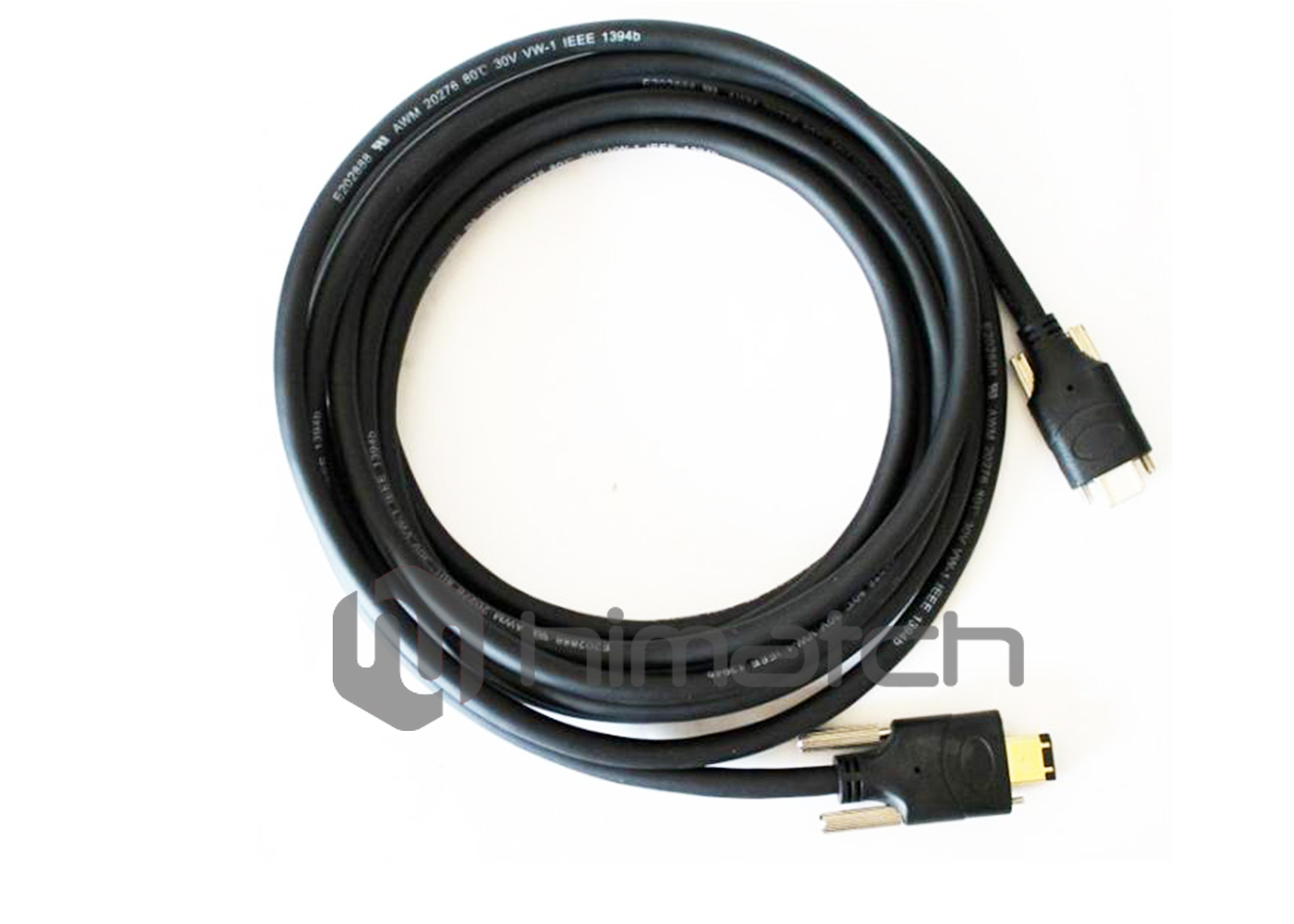

Himatch’s 1394b 800 camera cable are very high performance cables, built with high flexible full shielding cable, with 1394b 9pin at both ends, molding with or without screw locking, they are used primarily for data transfer IEEE 1394 at speed up to 800Mbps between multimedia devices, industrial 1394 cameras.

Specification:

Features

Support for high speed industrial camera image transmission.

Special braiding improves anti-jamming performance.

Full speed transmit 400Mbps,800Mbps

100% electronically tested for functionality

Double shielded braid + foil design protect EMI/RFI

RoHS and REACH compliant

Application

IEEE 1394 Cameras

Digital cameras,

Hard disks

Scanners

Graphic cards

Bending radius.

The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)

Tow chain installation.

In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

Install as many partitions as possible to avoid interference between cables.

Cable length

If the cable is too short and the cable is always tight in the drag chain, the cable jacket will be worn out because of the friction between the cable and the drag chain;

If the cable is too long, then the cable will be slack in the drag chain, also because of the friction between the cables, the jacket also will be wear and tear.

Both of the above will shorten the service life of the cable, please select the most appropriate cable length.

HIMATCH technology was found in 2004, specializes in designing, developing and manufacturing connectors, and cable assembly, also provide the specialize service for the customer's big and complicated projects.

As an ISO9001 qualified company, We will continuous to provide high quality products and cooperate with different customers from all over the world, OEM &ODM projects available from all our clients.

Connector and Cable assembly Business.
Professional manufacturer and sales machine vision data cables: (high flexible) 1394 cable, (tank chain level) Camera Link high speed data cable, (industrial camera ) CCXC cable, (special cable) GigE cable and etc..

OEM and ODM available , such as signal cables, sensor cables, control cables, products are mainly exported to Europe and the United States, high-end equipment applicable. The products can be customized according to specific requirements, such as: 1394 data cables, such as: high standard cables, soft cable, fixed with screw, with fixed latches, elbow connection, straight head connected with a variety of ferrite cores shielding cable. Camera Link MDR 26P, 26P SDR data cables, such as: high flexible / standard CL cable, high flexible / standard Power Over Link cable, Mini CL cable. 90 degree elbow cable. CCXC 12P data cable, etc. a variety of industrial cameras power supply and I/O cable. Variety of product, reasonable price, timely delivery date, stable and reliable quality.

In order to provide the best service to our customers, we put all our emphasis on new product development, quality control and fast delivery and provide the high competitive price. We make every effort to communicate with our customers, to understand their needs and to tailor efficient and cost-effective solutions for them.

We sincerely regard our customers as long-term partners. We happily listen to customer suggestions and criticisms. This is the starting point from which we can both enhance our capabilities and achieve continuous improvement for our clients.

Our business motto: Mutual benefit, cooperate honestly.
