IEEE 1394 firewire 800 Custom Cable Assemblies for Camera Connection

Description:

• Himatch’s IEEE 1394 800 cable are very high performance cables with 9pin Firewire connector at both ends,with robust molding with or without screw locking, they are used primarily for data transfer IEEE 1394 at speed up to 800Mbps between multimedia devices, industrial 1394 cameras.

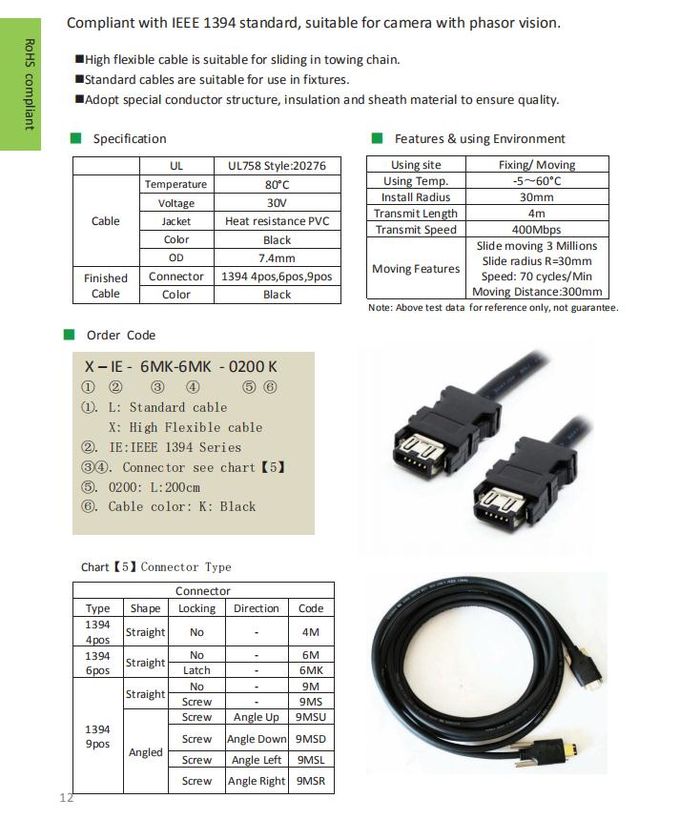

Specification:

Features

• Full speed transmit 400Mbps,800Mbps
• 100% electronically tested for functionality
• Double shielded braid + foil design protect EMI/RFI
• RoHS and REACH compliant

Application

• IEEE 1394 Cameras
• Digital cameras,
• Hard disks
• Scanners
• Graphic cards

Bending radius.

The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)

Tow chain installation.

In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

Install as many partitions as possible to avoid interference between cables.

Cable length

If the cable is too short and the cable is always tight in the drag chain, the cable jacket will be worn out because of the friction between the cable and the drag chain;

If the cable is too long, then the cable will be slack in the drag chain, also because of the friction between the cables, the jacket also will be wear and tear.

Both of the above will shorten the service life of the cable, please select the most appropriate cable length.
